GET TO KNOW OUR AGRICULTURAL MACHINES
STRIP TILL – A unit for strip cultivation
Strip tillage – this is a soil cultivation system that involves only loosening narrow strips into which seeds are sown. It combines the advantages of conventional soil cultivation (including crop safety) with the benefits of direct sowing (including soil protection against erosion and cost minimization. This technology also allows for the use of localized fertilization. A strip tillage machine is a very complicated and complex unit , consisting of components performing a number of activities in one pass - cutting and loosening the soil in the zone of main growth and development of plants, sowing fertilizer (or fertilizers) on depth from 15 cm to 35 cm, pre-sowing cultivation, sowing, soil compaction and pressing.
|
Model |
AUP600 |
AUP600 |
AUP450 |
AUP450 |
AUP300 |
AUP300 |
AUP300 |
|
Number of cultivation modules |
up to 12 |
up to 8 |
up to 10 |
up to 6 |
up to 9 |
up to 6 |
up to 4 |
|
Productivity hectare/h |
6 km/h - 3,6 h |
6 km/h - 2,4 h |
6 km/h - 3,0 h |
6 km/h - 1,8 h |
6 km/h - 2,7 h |
6 km/h - 1,8 h |
6 km/h - 1,2 h |
|
Power demand [HP] |
25 - 1 module |
25 - 1 module |
25 - 1 module |
25 - 1 module |
25 - 1 module |
25 - 1 module |
25 - 1 module |
|
Working width [m] |
6 |
6 |
4,5 |
4,5 |
3 |
3 |
3 |
|
Weight [kg] |
3300 |
3300 |
3300 |
1000 |
1000 |
1000 |
1000 |
|
Transport width [m] |
3,20 |
3,20 |
3,20 |
3,00 |
3,00 |
3,00 |
3,00 |
|
Transport height [m] |
3,20 |
3,20 |
3,20 |
1,50 |
1,50 |
1,50 |
1,50 |
|
Transport heigth [m] |
6,00 |
6,00 |
4,5 |
4,5 |
2,4 |
2,40 |
2,40 |
No-plow subsoiler
The subsoiler is intended for deep loosening and cultivation of the soil. Thanks to the use of a special tooth structure and durable materials, we can perform deep loosening, up to 50 cm. Another advantage of our subsoilers is that each section is equipped with a hydraulic cylinder and a hydro accumulator, which protects our machine very well. The double spiked roller ensures proper seasoning and leveling of the cultivated land. Deepers loosen the soil and restore the structure to its original state. Thanks to this, not only the quality of the land is improved, but also its retention capacity. Plants thus have better access to minerals and nutrients.
|
Model |
GB180 |
GB200 |
GB250 |
GB300 |
|
Width [cm] |
180 |
200 |
250 |
300 |
|
Number of chisels |
3 |
4 |
5 |
7 |
|
Safeguard |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
|
Power demand [HP] |
80 - 100 |
90 - 120 |
150 - 200 |
200 - 250 |
- Equipped with 2 spike rollers with a diameter of 52 cm
- Hydraulic protection with hydroaccumulators
- Working depth up to 50 cm
Bale grab
The gripper has a durable and proven design. It uses solid, Polish actuators and double-braided hydraulic hoses and a set of connectors. The design of the gripper guarantees safe transport of bales wrapped in foil. The gripper does not damage the foil during transport and when adding bales.
2 variants available:
CHB1T2 ATMP
| Model | CHB1 T2 |
|---|---|
| Hydraulic cylinders | 1 |
| Max. beam diameter [m] | 1,4 |
| Min. beam diameter [m] | 0,88 |
| Height [m] | 1,15 |
| Arm width [m] | 0,73 |
| Weight [kg] | 175 |
CHB2 ATMP
| Model | CHB2 |
|---|---|
| Hydraulic cylinders | 2 |
| Max. beam diameter [m] | 1,6 |
| Min. beam diameter [m] | 1,1 |
| Height [m] | 1,25 |
| Arm width [m] | 0,88 |
| Weight [kg] | 160 |
Meadow and field drag
The materials used in our fibers are of high quality. Thick-walled pipes and profiles from a Polish steelworks, double-sided, durable, Polish cast iron elements guarantee trouble-free operation for many years.
The distinguishing features of our fibers are:
- 4 rows of castings
- reinforced mounting
- made of metallurgical angle
- double-sided combi castings
- reinforced hinges
- rings connecting casts made of 14mm wire
- additional chain security
- rolled side slides
- shot-blasted and powder-coated
The set includes a set of hydraulic hoses with connectors. Possibility of using additional primer or galvanizing.
|
Model |
WL2 |
WL4 |
WL5 |
WL6 |
WL8 |
|
Width [m] |
2 |
4 |
5 |
6 |
8 |
|
Number of actuators |
- |
-/1 |
1 |
1 |
2 |
|
Number of rows |
3 |
4 |
4 |
4 |
4 |
|
Tractor power [HP] |
od 15 |
od 40 |
od 60 |
od 75 |
od 95 |
|
Number of castings |
17 |
50 |
62 |
74 |
102 |
|
Actual weight [kg] |
90 |
330/350 |
460 |
560 |
770 |
Pallet fork claw
The hydraulically operated claw is designed for the pallet fork frame. It expands the capabilities of the forks, enabling the transport of materials, protecting them against shifting or sliding.
Technical data:
• Max. opening height: 80 cm
• Min. opening height:
• Total length: 84 cm
• Serrated inner side
• Durable hydraulic cylinder
• Easy and quick installation
• Two versions: ISO2 and ISO3
• Weight: 47kg / 52kg
Tree grab
The machine is intended for transporting trees, trunks, logs, logs and boards. Its solid, compact and proven design ensures comfortable and safe operation. It uses two reinforced hydraulic cylinders of Polish production. The grippers are equipped with grease nipples, double-braided hoses and hydraulic connectors. The set includes hydraulic lines with connectors.
|
Model |
CHD |
CHDXL |
|
Width [m] |
1 |
1,2 |
| Opening height [m] |
1 |
1,5 |
|
Min. depth [m] |
0,3 |
0,5 |
|
Height [m] |
1 |
1,4 |
|
Max tree diameter [m] |
0,65 |
1 |
|
Min. tree diameter [m] |
0,35 |
0,55 |
| Weight [kg] | 235 | 400 |
Leveler/Grader
It is a simple device designed to remove ground unevenness, drifted soil or land planting. Perfect for spreading sand and stones. The leveler has a high scraping threshold, and the possibility of ordering any size allows them to be connected to both small tractors and large agricultural or construction machines. The devices are available with any mounting.
|
Model |
NIW12 |
NIW15 |
NIW18 |
NIW2 |
NIW25 |
|
Dimensions [cm] |
120 x 120 |
150 x 120 |
180 x 120 |
200 x 120 |
250 x 120 |
|
Weight [kg] (mounting euro frame) |
110 |
145 |
180 |
200 |
250 |
|
Truss height [cm] |
12 |
12 |
12 |
12 |
12 |
Bale forks
The forks are equipped with forged Waryński 880mm teeth. Welded conical bushes prevent the teeth from rotating and protect the frame against damage. The offer includes forks with Euroframe, SMS and three-point linkage mounting. It is possible to make forks with a different mounting.
Bale forks - Euro frame
| Width [m] | 1,12 |
| Height [m] | 0,54 |
| Fork spacing [m] | 0,79 |
| Weight [kg] | 45 |
Bale forks - front linkage
| Width [m] | 0,85 |
| Height [m] | 0,65 |
| Fork spacing [m] | 0,55 |
| Weight [kg] | 35 |
Universal shovel model 1 and 2
Universal shovel. The spoon is made of steel with thicknesses ranging from 4 mm to 15 mm. The shovel has blades and lower slides made of hard-wearing HB500 steel.
|
Model |
L12E |
L14E |
L16E |
L18E |
L2E |
L22E |
L25E |
|
Width [m] |
1,2 |
1,4 |
1,6 |
1,8 |
2,0 |
2,2 |
2,5 |
|
Capacity [m3] |
0,40 |
0,46 |
0,53 |
0,60 |
0,66 |
0,72 |
0,82 |
|
Weight [kg] |
160 |
180 |
200 |
220 |
240 |
260 |
290 |
|
Depth [m] |
0,88 |
0,88 |
0,88 |
0,88 |
0,88 |
0,88 |
0,88 |
Capacitive bucket
Capacity bucket. The spoon is made of steel with thicknesses ranging from 4 mm to 15 mm. The shovel has blades and lower slides made of hard-wearing HB500 steel.
|
Model |
LP1 |
LP15 |
LP2 |
LP25 |
LP3 |
LP35 |
|
Capacity [m3] |
1 |
1,5 |
2 |
2,5 |
3 |
3,5 |
Width - ANY WIDTH
Fork - crocodiles
They have forged teeth of very high strength (upper closing 680mm, lower 880 mm) - one of the strongest teeth on the market. Welded-in conical bushings prevent the teeth from rotating and protect the frame against damage. The two hydraulic actuators used to close the crocodile are of Polish production. They are characterized by high quality and durability. The set includes hydraulic lines with connectors.
|
Model |
K12 |
K14 |
K16 |
K18 |
K2 |
K22 |
K24 |
|
Width [m] |
1,2 |
1,4 |
1,6 |
1,8 |
2,0 |
2,2 |
2,4 |
Manure forks
Forks are the ideal solution for removing manure from stables and spreading fertilizer in the garden. The forward bend of the tines allows picking up any materials. In addition, the forks are specially hardened, so they can withstand heavy loads.
|
Model |
WO12 |
WO14 |
WO16 |
WO18 |
WO2 |
WO22 |
WO24 |
|
Width [m] |
1,2 |
1,4 |
1,6 |
1,8 |
2,0 |
2,2 |
2,4 |
|
Weight [kg] |
120 |
130 |
150 |
170 |
200 |
220 |
240 |
|
Height [m] |
0,77 |
0,77 |
0,77 |
0,77 |
0,77 |
0,77 |
0,77 |
|
Depth [m] |
0,94 |
0,94 |
0,94 |
0,94 |
0,94 |
0,94 |
0,94 |
Shovel-crocodile - Forged tooth
Crocodile shovels are equipped with unscrewable sides, so they can also be used to transport other materials.
|
Model |
SZKZK16 |
SZKZK18 |
SZKZK2 |
SZKZK22 |
SZKZK24 |
|
Width [m] |
1,6 |
1,8 |
2 |
2,2 |
2,4 |
XL
|
Model |
SZKZKXL18 |
SZKZKXL2 |
SZKZKXL22 |
SZKZKXL24 |
|
Width [m] |
1,6 |
1,8 |
2 |
2,2 |
Shovel-crocodile - Burnt tooth
Crocodile shovels are equipped with unscrewable sides, so they can also be used to transport other materials.
|
Model |
SZKZP16 |
SZKZP18 |
SZKZP2 |
SZKZP22 |
SZKZP24 |
|
Width [m] |
1,6 |
1,8 |
2 |
2,2 |
2,4 |
XL
|
Model |
SZKZPXL18 |
SZKZPXL2 |
SZKZPXL22 |
SZKZPXL24 |
|
Width [m] |
1,6 |
1,8 |
2 |
2,2 |
Tree transplanter
The tree transplanter is perfect for home use. Thanks to its versatility and variety of mountings, it can be connected to tractors with loaders and loaders. Available in two sizes.
3 variants available:
PD1 WEIGHT - 1000 KG
PD2 WEIGHT - 700 KG
PD MINI INCLUDED IN THE PRICE - (shovel 40 cm, 32 cm, 25 cm, 20 cm)
(*2 scoring knives)
Renult front linkage (for all models)
The front linkage for Renult is used to quickly connect machines and mounted tools to the tractor and to change them from the working position to the transport position and vice versa.
•Capacity - 2.8 t
•Double acting cylinders
•Adjustable/foldable arms
•25 mm arms
•Hydraulic hoses included (4.5 m)
•Tuz sandblasted and powder coated
Claas front linkage (for all models)
The front linkage for Claas is used to quickly connect machines and mounted tools to the tractor and to change them from the working position to the transport position and vice versa.
•Capacity - 2.8 t
•Double acting cylinders
•Adjustable/foldable arms
•25 mm arms
•Hydraulic hoses included (4.5 m)
•Tuz sandblasted and powder coated
Ford New Holland front linkage (for all models)
The front linkage for Ford New Holland is used to quickly connect machines and mounted tools to the tractor and to change them from the working position to the transport position and vice versa.
•Capacity - 2.8 t
•Double acting cylinders
•Adjustable/foldable arms
•25 mm arms
•Hydraulic hoses included (4.5 m)
•Tuz sandblasted and powder coated
KLESBERG front weight
A tractor that is too light due to increased wheel slip may have problems maintaining the appropriate driving track. The KLESBERG counterweight prevents such situations, improves work comfort and translates directly into reduced fuel consumption.
Available variants:
200 KG
300 KG
600 KG
800 KG
1000 KG
1200 KG
1600 KG
1800 KG
KUŹNIA-KOWALSKI rotary mower
| Model |
1,35 mini (Z00/1) |
1,35 (Z001/1) |
1,65(Z001) |
1,85 (Z001/2) |
2,10 (Z001/3) |
| Tractor power from: |
16 kW/22 KM |
20 kW/28 KM |
30 kW/ 40 KM |
44 kW/ 60 KM |
52 kW/ 70 KM |
| Rotational speed PTO |
540 rpm |
540 rpm |
540 rpm |
540 rpm |
540 rpm |
| Cutting height (mm) |
42 i 32 |
42 i 32 |
42 i 32 |
42 i 32 |
42 i 32 |
| Number of drums (pcs) |
2 |
2 |
2 |
2 |
2 |
| Number of knives (pcs.) |
6 |
6 |
6 |
6 |
8 |
| Transport speed |
up to 20 km/h |
up to 20 km/h |
up to 20 km/h |
up to 20 km/h |
up to 20 km/h |
| Working speed |
up to 15 km/h |
up to 15 km/h |
up to 15 km/h |
up to 15 km/h |
up to 15 km/h |
| Working width (cm) |
135 |
135 |
165 |
185 |
210 |
| Weight (kg) |
240 |
280 |
320 |
380 |
560 |

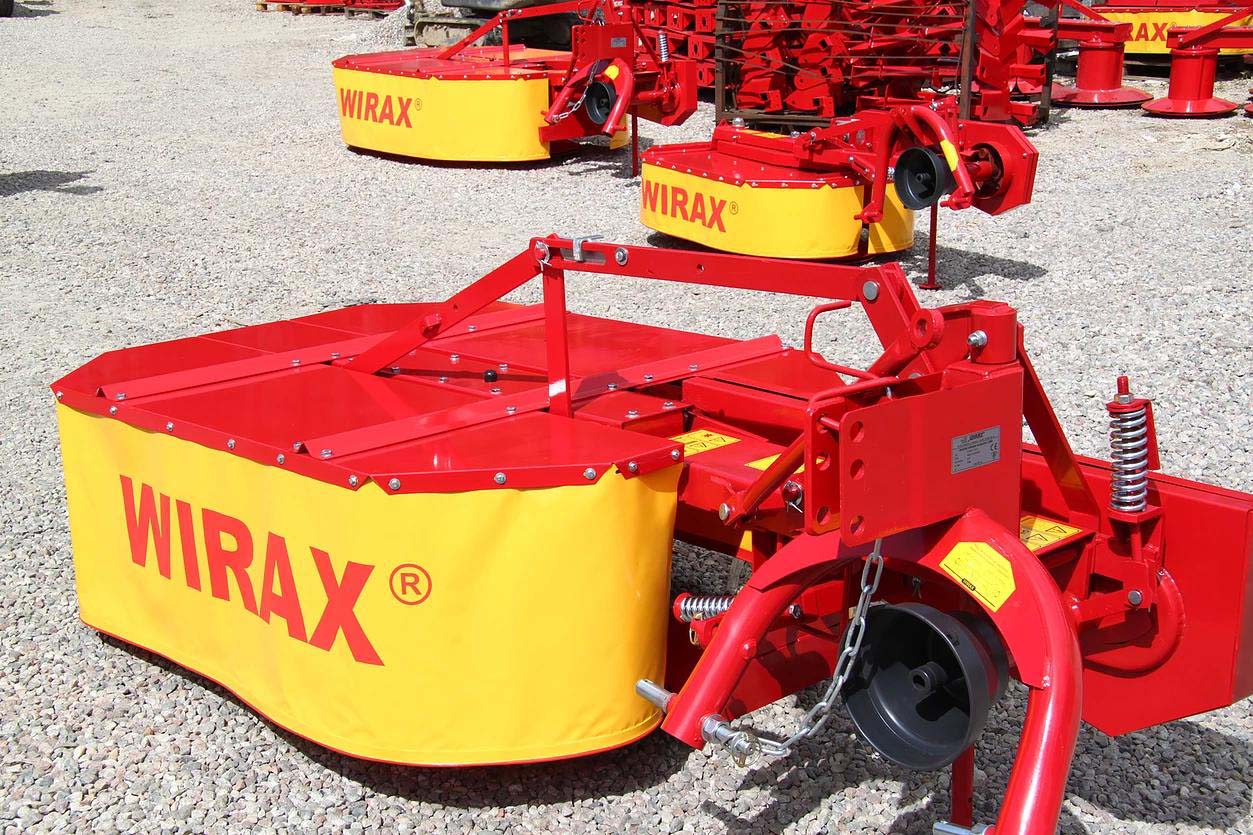

WIRAX rotary mower
Rotary mowers are designed for mowing all green plants in meadows and fields. The high speed of the working discs allows for very good mowing quality and efficiency. It works well on both low- and high-income farms.
| Model | 1,35 | 1,35 | 1,65 | 1,85 | 2,10 |
| Weight [kg] | 245 | 330 | 400 | 455 | 555 |
|---|---|---|---|---|---|
| Working width [m] | 1,35 | 1,35 | 1,65 | 1,85 | 2,10 |
| Swath width [m] | 0,60 | 0,60 | 0,70 | 0,80 | 0,90 |
| Working efficiency [ha/h] | 0,70 | 1,0 | 1,5 | 2,5 | 2,5 |
| Number of knives [pcs.] | 4 | 4 | 6 | 6 | 8 |
| PTO speed [rpm] | 540 | 540 | 540 | 540 | 540 |
Zetor front linkage (for all models)
The front linkage for Zetor is used to quickly connect machines and mounted tools to the tractor and to change them from the working position to the transport position and vice versa.
•Capacity - 2.8 t
•Double acting cylinders
•Adjustable/foldable arms
•25 mm arms
•Hydraulic hoses included (4.5 m)
•Tuz sandblasted and powder coated
Deutz Fahr front linkage (for all models)
The front linkage for Deutz Fahr is used to quickly connect machines and mounted tools to the tractor and to change them from the working position to the transport position and vice versa.
•Capacity - 2.8 t
•Double acting cylinders
•Adjustable/foldable arms
•25 mm arms
•Hydraulic hoses included (4.5 m)
•Tuz sandblasted and powder coated
Steyr front linkage (for all models)
The front linkage for Steyr is used to quickly connect machines and mounted tools to the tractor and to change them from the working position to the transport position and vice versa.
•Capacity - 2.8 t
•Double acting cylinders
•Adjustable/foldable arms
•25 mm arms
•Hydraulic hoses included (4.5 m)
•Tuz sandblasted and powder coated
Massey Ferguson front linkage (for all models)
The front linkage for Massey Ferguson is used to quickly connect machines and mounted tools to the tractor and to change them from the working position to the transport position and vice versa.
•Capacity - 2.8 t
•Double acting cylinders
•Adjustable/foldable arms
•25 mm arms
•Hydraulic hoses included (4.5 m)
•Tuz sandblasted and powder coated
Kubota front linkage (for all models)
The front linkage for Kubota is used to quickly connect machines and mounted tools to the tractor and to change them from the working position to the transport position and vice versa.
•Capacity - 2.8 t
•Double acting cylinders
•Adjustable/foldable arms
•25 mm arms
•Hydraulic hoses included (4.5 m)
•Tuz sandblasted and powder coated
Case front linkage (for all models)
The front linkage for Case is used to quickly connect machines and mounted tools to the tractor and to change them from the working position to the transport position and vice versa.
•Capacity - 2.8 t
•Double acting cylinders
•Adjustable/foldable arms
•25 mm arms
•Hydraulic hoses included (4.5 m)
•Tuz sandblasted and powder coated
John Deere front linkage (for all models)
The front linkage for John Deere is used to quickly connect machines and mounted tools to the tractor and to change them from the working position to the transport position and vice versa.
•Capacity - 2.8 t
•Double acting cylinders
•Adjustable/foldable arms
•25 mm arms
•Hydraulic hoses included (4.5 m)
•Tuz sandblasted and powder coated
Valtra front linkage (for all models)
The front linkage for Valtra is used to quickly connect machines and mounted tools to the tractor and to change them from the working position to the transport position and vice versa.
•Capacity - 2.8 t
•Double acting cylinders
•Adjustable/foldable arms
•25 mm arms
•Hydraulic hoses included (4.5 m)
•Tuz sandblasted and powder coated
New Holland front linkage (for all models)
The front linkage for New Holland is used to quickly connect machines and mounted tools to the tractor and to change them from the working position to the transport position and vice versa.
•Capacity - 2.8 t
•Double acting cylinders
•Adjustable/foldable arms
•25 mm arms
•Hydraulic hoses included (4.5 m)
•Tuz sandblasted and powder coated
