CHECK OUT OUR MUNICIPAL MACHINES

 Euroframe adapter - for forklift

The forks of the trolley are inserted into the reinforced mount ("pocket") of the adapter and locked with screws. The adapter has a quick locking system for the lower bolts. It uses solid and durable Polish hydraulic cylinders, along with double-braided lines from Waryński.

Technical data:

- number of cylinders - 2

 Hydraulic scraper

It has a patented spring loaded cleaning device; It has a time relay and switch for each aisle. It controls the movement of the scrapers in case of blockage. It can control up to 6 aisles on the same control panel.



 Model

 ZH200

 ZH220

 ZH240

 ZH260

 Width [cm]

200

220

240

260

 Number of   actuators

2

2

2

2





 Snowplow for a forklift

A snow plow for a forklift is an ideal solution for people who value simple and hassle-free snow removal. The product is durable and comfortable to use.

Technical data:

-height - 48 cm

- scraper rubber reinforced with steel cables

-turn - turnbuckle or hydraulic cylinder



 Model

 PW 1,4

  PW 1,6

   PT 2

  PW 2,2   PW 2,5

 Width [cm]

    140

   160

   200

     220    250

 Weight [kg]

    85

   95

   115

     125    140

 Snowplow for an off-road vehicle

A snow plow for an off-road vehicle is the perfect solution for people who value simple and hassle-free snow removal. The product is durable and comfortable to use.

Technical data:

-height - 48 cm

- scraper rubber reinforced with steel cables

- twist - turnbuckle

-universal mounting to the chassis

- electric winch holder included

-possibility of selling together with a winch

 Model

   PT 1,6

   PT 2

 Width [cm]

   160

   200

 Weight [kg]

   120

   140

 WG scraper

A tool that is perfect for fruit farming. Efficiently and quickly removes leaves, weeds and other unnecessary dirt, which allows you to quickly tidy up.

Technical data:

- width after folding [mm] - 1900

- width after maximum unfolding [mm] - 3100

- working field width [mm] - 1200

-oil pressure [bar] - 130

-oil flow [l] - 25-60

-weight [kg] - 80

 Root ripper – two-arm type ZRK

The ZRK type double-arm ripper is designed for pulling out roots or stumps.



 Model             ZRK-001              ZRK-002
 Total weight without mounting [kg]                  115 160
 Height [mm] A                 855 855
 Width [mm] B                 349 349
 Tooth length [mm] C                 901 901

 Weed brush

The SDC series brush is an effective tool that easily removes various types of weeds, lichens, moss, etc. from all types of paved surfaces, parking lots, sidewalks and edges close to road curbs.

 Model             SDC
 Height A [mm] min/max       850/1050
 Width B [mm] min/max       1300/2650
 Working range R1 [mm]       2000
 Brush diameter D [mm]       800
 Angular deflection [0]       90
 Three-point linkage mounting [standard]       kat. 1 i 2
 Oil pressure [bar] min/max       30-170
 Oil flow [bar] min/max       60-75
 Weight [kg]       180

ZL/O road sweeper

The ZL/O road sweeper is equipped with a rotator that allows the working surface of the brushes to be set at an angle to the direction of movement of the machine. Thanks to this arrangement, the collected material does not accumulate in front of the sweeper but is pushed aside.



 Model       ZL/O 150     ZL/O  200    ZL/O 250
 working width - A [mm]       1526         2026

       2526
 total width - B mm]       1560         2060        2560

 PZL attachment

PZL attachment for the ZL road sweeper, enabling the brushes to be tilted away from the central axis. The swept material accumulates inside or is pushed outside - depending on the setting - and is transferred to further rows of brushes - this increases the efficiency and accuracy of the sweeper. The working angle is set manually - the set includes a key to lock the selected setting.

 Model       PZL 150     PZL 200    PZL 250     PZL 300
 working width [mm]       1525         2025

       2525         3025
 height [mm]        371          371          371            371
 Weight [kg]         50            57          64              71

 ZW road sweeper

The ZW road sweeper is widely used for cleaning concrete surfaces, including: sidewalks and parking lots.



 Model        ZW 120        ZW 135        ZW 150
 Sorking width [mm]       1200         1350          1500
 Brush diameter [mm]        400          400          400
 Total width [mm]       1505         1520          1670
 Length [mm]       1165         1165          1165
 Height [mm]        820          820          820
 Weight [kg]*         124          131           138



Media requirements



 Power      [km]  PTO revolutions        [rpm]  Oil flow           [l/min]  Oil pressure            [bar]
    15         540             15            140

 ZMW road sweeper

The ZMW road sweeper is widely used for cleaning concrete surfaces. Adapted for small municipal tractors, it can be used for cleaning housing estates, squares, parking lots, sports facilities, etc. The waste tank integrated with the machine makes it easier to collect all types of waste. Installing an optional side brush will allow you to remove dirt from curbs and hard-to-reach places.

 Model               ZMW 120        ZMW 135        ZMW 150
 A – working width [mm]                1200         1350          1500
 Brush diameter [mm]                 400         400           400
 B – total width [mm]                1460                1610          1760
 C – length [mm]                1620        1620          1620
 D – height [mm]                 868         868           868
 Weight [kg]                 200         215           230
 Basket capacity [l]                 138         149           160



Media requirements

   Power       [km]     PTO revolutions       [rpm]       Oil flow         [l/min]    Oil pressure          [bar]
   15        540          15           140

 ZMD road sweeper

ZMD road sweeper - was designed to work on large areas such as airports, port areas or industrial areas.

 Model  ZMD 200     ZMD 250     ZMD 300
 Working width A [mm]      2000       2500         3000
 Total width B [mm]    2270          2770         3270
 Height C [mm]        1180        1180          1180
 Length D [mm]      1150         1150          1150
 Height with mounting D [mm]      1310        1310          1310
 Brush diameter [mm]       900        900          900
 Weight without mounting [kg]      390        420          450

 Snow plow, grader / bulldozer - three-point linkage

Light snow plow type C is used for work with tractors and loaders. Its task is winter maintenance of roads, squares and sidewalks covered with concrete, asphalt or paving stones.

Technical data:

-height - 55 cm

- scraper rubber reinforced with steel cables

- blade rotation - 360 degrees

-possibility of installing a steel blade

-turn - turnbuckle or hydraulic cylinder



 Model

   PR 1,4

   PR 1,6

   PR 1,8

   PR 2

   PR 2,2

   PR 2,5

 Width [cm]

   140

   160

   180

   200

   220

   250

 Weight [kg]

   95

   110

   125

   140

   160

   185

 Light snow plow - type C

Light snow plow type C is used for work with tractors and loaders. Its task is winter maintenance of roads, squares and sidewalks covered with concrete, asphalt or paving stones.

Technical data:

-height - 70 cm

-scraper rubber reinforced with steel cables

-turn - turnbuckle or hydraulic cylinder



 Model

   PC 1,4

   PC 1,6

   PC 1,8

   PC 2

   PC 2,2

   PC 2,5

 Width [cm]

   140

   160

   180

   200

   220

   250

 Weight [kg]

   150

   165

   180

   190

   210

   235

 Snowplow - type C

The type C snow plow is used to work with tractors and loaders. Its task is winter maintenance of roads, squares and sidewalks covered with concrete, asphalt or paving stones.

Technical data:

-height - 90 cm

-scraper rubber - 50 mm "cube" reinforced with cord

-turn - turnbuckle or hydraulic cylinder

 Model

   PC 2

   PC 2,2

   PC 2,6

   PC 2,8

   PC 3

   PC 3,3
 Width [cm]

   200

   220

   260

   280

   300

   330
 Weight [kg]

   240

   260

   300

   320

   340

   370

 Snow plow - type F

The F type snow plow is used to work with high-power tractors and loaders. Its task is winter maintenance of roads, squares and sidewalks covered with concrete, asphalt or paving stones.

Technical data:

-height - 95 cm

-scraper rubber - 50 mm "cube" reinforced with cord

-turn - turnbuckle or hydraulic cylinder

-terrain copying function

-springs absorbing the impact of the blade



Model

   PF 2

   PF 2,2

   PF 2,6

   PF 2,8

   PF 3

   PF 3,3
 Width [cm]

   200

   220

   260

   280

   300

   330
 Weight [kg]

   240

   260

   300

   320

   340

   370

 Arrow/road snow plow for small tractors

Arrow plow designed to work with small tractors and mini-loaders. Its task is winter maintenance of roads, squares and sidewalks covered with concrete, asphalt or paving stones.

Technical data:

-height - 70 cm

-scraper rubber - 50 mm "cube" reinforced with cord

-LED marker lighting

-smooth adjustment of arms

-terrain copying function

-springs absorbing the impact of the blade

-material connecting the arms - polyurethane

- arms and lights controller



 Model

   PS 1,47

   PS 2

 PS 2,2

 Width [cm]

   147

   200

   220

 Weight [kg]

   155

   185

   215

 Arrow/road snow plow

The arrow snow plow is designed to work with high-power tractors and loaders. Its task is winter maintenance of roads, squares and sidewalks covered with concrete, asphalt or paving stones.



Technical data:

-height - 95 cm

- scraper rubber - 50 mm "cube" reinforced with cord

- LED marker lighting

- smooth adjustment of arms

- terrain copying function

-springs absorbing the impact of the blade

- material connecting the arms - polyurethane

- arms and lights controller

 Model

   PS 2

   PS 2,2

   PS 2,4

   PS 2,6

   PS 2,8

   PS 3

   PS 3,3

 Width [cm]

   200

   220

   240

   260

   280

   300

   330

 Weight [kg]

   430

   465

   480

   540

   580

   610

   650

 ZGT-250 land leveler

A multifunctional device used for leveling unpaved field and forest roads, pushing piles of earth, sand and other loose materials.In the winter season it can be used for snow removal.



Technical data:

Working width [mm] - 250

Length [mm] - 2100

Height [mm] - 1200

Required number of hydraulic sockets - 2

Own weight [kg] - 500

Power demand [kW] - 22

Electrical installation - 1 12V cigarette lighter socket

 ZL road sweeper

 Road sweeper designed for the agricultural industry. Designed for tidying up large warehouse areas, halls and parking lots.

Basic equipment:

  • brushes made of very durable polypropylene fiber, 3 mm in diameter and 250 mm high, arranged in rows. The first row of brushes has a "V" arrangement, which results in more precise collection of dirt;
  • support feet that prevent the bristles from deforming after work, and thus increase their durability;
  • three types of mounting: fork pockets, category II three-point linkage mounting, loader bucket blade mounting.



Additional equipment:

  • polyurethane blade,
  • mounting adapted to the customer's machine.



The presented machine is available in two lengths:

  • ZL road sweeper – equipped with 7 rows of brushes
  • ZL "LONG" sweeper - equipped with 13 rows of brushes



Model   ZL 150      ZL 200    ZL 250      ZL 300
 Working width A [mm] 1500       2000     2500       3000
 Number of brush rows [pcs.] 7          7        7           7
 Length of brush unit [mm] 400        400        400         400
 Brush set height [mm] 250          250      250         250



 Model

ZL „LONG” 150

ZL „LONG” 200

ZL „LONG” 250

ZL „LONG” 300
 Working width A[mm] 1500 2000 2500 3000
Number of brush rows [pcs.] 13 13 13 13
Length of the brush set [mm] 780 780 780 780
 Height of the brush unit [mm] 250 250 250 250

 PSM spreader

The spreader is designed for spreading sand, salt or their mixture. The PSM spreader will work well on narrow residential streets, alleys and sidewalks.



Additional equipment:

– lighting

– mounting adapted to the customer's machine



 Model  PSM 100 PSM 120 PSM 140 PSM 160
 Working width – A [cm] 100 120 140 160
 Transport width – D [cm] 125 145 165 185
Requirements number of hydraulic connections 2 (1 pair) 2 (1 pair) 2 (1 pair) 2 (1 pair)
Drive type hydraulic  hydraulic  hydraulic  hydraulic
Oil flow [l/min] 55-70 55-70 55-70 55-70
Oil pressure [bar] 150 150 150 150
Capacity (theoretical) [m3] 0,26 0,31 0,36 0,41
Overall dimensions (UZ) C/D/B [cm] 83/125/73 83/145/73 83/165/73 83/185/73
Max. working speed [km/h] 15 15 15 15
Max. transport speed [km/h] 25 25 25 25
Unladen mass [kg] 220 240 260 280
Weight with load (for sand / 1m3 – 1520kg) [kg] 615 710 810 90

 PSS spreader

The spreader is intended for spreading sand and salt on streets, parking lots, sidewalks, housing estates, as well as for spreading aggregate during construction or road repairs, as well as for liming lawns and playing fields.

Additional equipment:

– mounting adapted to the customer's machine



 Model  PSS 160 PSS 200 PSS 240
Working width – A [cm] 157 198 238
Transport width – D [cm] 180 220 260
Tractor power [HP] od 50 od 60 od 70
Corner. three-point hitch II II II
Requirements number of hydraulic connections 4 (2×2 pairs)  4 (2×2 pairs)  4 (2×2 pairs)
Drive type hydraulic  hydraulic  hydraulic
Oil flow [l/min] 10-40 10-40 10-40
Oil pressure [bar] 150 150 150
Capacity (theoretical) [m3] 0,5 1,05 1,60
Overall dimensions (UZ) C/D/B    [cm] 170/180/115 170/220/115 170/260/115
Max. working speed [km/h] 15 15 15
Max. transport speed [km/h] 25 25 25
Unladen mass [kg] 557 700 843
Weight with load (for sand / 1m3 – 1520kg) [kg] 1545 2295 3125

 ZS road sweeper

A road sweeper with a bucket for loose materials is ideal for sweeping various surfaces, including: sidewalks, parking lots, warehouses, industrial halls, farms and construction sites.



 Model  ZS 120 ZS 140 ZS 160 ZS 180 ZS 200 ZS 220
Brush working width – A [mm] 1070 1270 1470 1670 1870 2070
Bucket working width – B [mm] 1200 1400 1600 1800 2000 2200
Total width of the sweeper – C [mm] 1460 1660 1860 2060 2260 2460
Total height of the sweeper – D [mm] 810 810 810 810 810 810
Total height of the bucket – E [mm] 700 700 700 700 700 700
Total length of the bucket – F [mm] 880 880 880 880 880 880
Total length of the sweeper – G [mm] 1390 1390 1390 1390 1390 1390
Bucket capacity [0.4m3] 0,4 0,46 0,53 0,6 0,66 0,72
Brush diameter [mm] 500 500 500 500 500 500
Bucket weight [kg] 165 175 185 195 205 215
Sweeper weight [kg] 85 90 95 100 105 110
Oil flow [l/min] 40-60 40-60 40-60 40-60 40-60 40-60
Oil pressure min/max [bar] 140/170  140/170  140/170  140/170  140/170  140/170

 ZE road sweeper

The road sweeper is a universal tool that can be used all year round. It is perfect for large asphalt, concrete and paving stone surfaces.



Basic equipment:

– Cast rubber wheels

– Hydraulic motor with connectors

– Footers

– Mounting options: Euro, SMS, Tuz

– Polypropylene brushes



Basic equipment:

– Cast rubber wheels

– Hydraulic motor with connectors

– Feet – Mounting to choose from: Euro, SMS, Tuz

– Polypropylene brushes



 Model

 ZE   120

 ZE   140

 ZE   150

 ZE   160

 ZE   180

 ZE   200

 ZE   220

 ZE  240
Working width – A [mm] 1200 1400 1500 1600 1800 2000 2200 2400
Total width – B [mm] 1556 1756 1856 1956 2156 2356 2556 2756
Height – C [mm] 558 558 558 558 558 558 558 558
Length – D [mm] 1229 1229 1229 1229 1229 1229 1229 1229
Height with mounting – E [mm] 860 860 860 860 860 860 860 860
Brush diameter [mm] 500 500 500 500 500 500 500 500
Weight [kg] 100 130 145 160 190 220 250 280

 ZML road sweeper

A machine that is perfect for cleaning large surfaces: asphalt, concrete, paving stones, industrial floors, access roads to building squares, etc.

Basic equipment:

– Cast rubber wheels

– Hydraulic motor with connectors

– Footers

– Euro holder



Additional equipment:

– Electrovalve

– Waste container

– Polyurethane blade

– Anti-spatter cover

– Side sweeping brush

– Water container with sprinkler

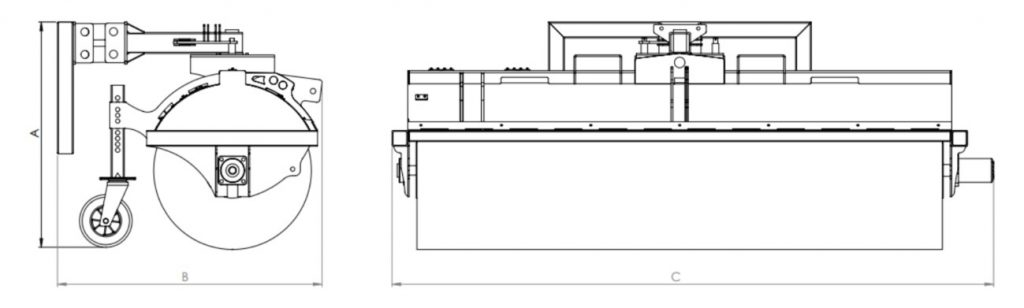

 Model   ZML 120   ZML 140   ZML 160   ZML 180   ZML 200   ZML 220   ZML 240
A[cm] 85 85 85 85 85 85 85
B[cm] 100 100 100 100 100 100 100
C[cm] 150 170 190 210 230 250 270

 ZL/S road sweeper

The brush road sweeper is perfect wherever there is a need to quickly tidy up halls, parking lots, etc. and to clear fresh snow from squares.



Basic equipment:

– Fork pockets

– Loader bucket mount

– Support feet

– Polypropylene brushes



Additional equipment:

– Three-point linkage mounting, category II

– Mounting on individual customer request

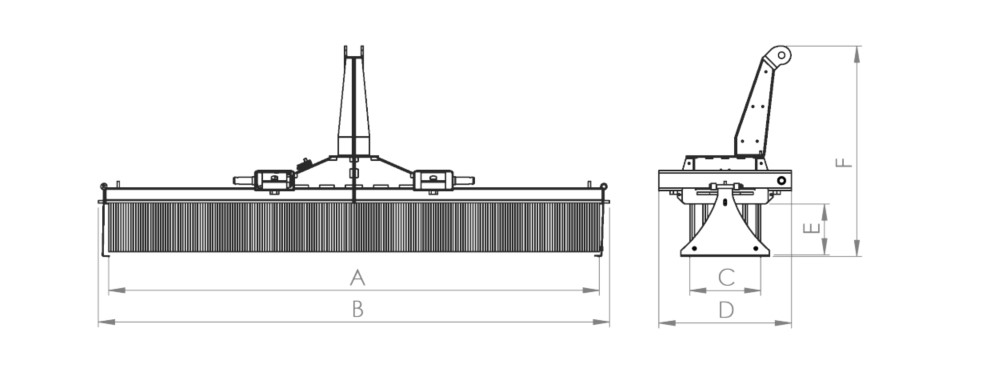

 Model       A [cm]      B [cm]      C [cm]      D [cm]      E [cm]      F [cm]
 ZL/S 150    150 162 30 54 25 86
 ZL/S 200     200 212 30 54 25 86
 ZL/S 250    250 262 30 54 25 86



 Model       A [cm]      B [cm]      C [cm]      D [cm]      E [cm]      F [cm]
 ZL/S LONG 150    150 162 30 85 25 86
 ZL/S LONG 200     200 212 30 85 25 86
 ZL/S LONG 250    250 262 30 85 25 86

We specialize in sales.
