EXPLORE OUR BUILDING MACHINES
SKITER - mini loader
SKITER MT380 is a mini loader designed for use in agriculture, horticulture, industry, construction and other related fields. A large number of additional equipment makes it have a wide range of applications and functionalities. Compact sizes enable work in places inaccessible to larger devices.
| Power (KW) | 17KW |
| Starter | Elektryczny |
| Rated load weight | 200kg |
| Spoon volume | 0.15 m³ |
| Max. load weight | 375kg |
| Working speed | 0–6 km/h |
| Empty weight | 890 kg |
| Cap. fuel tank | 25L |
| Cap. hydraulic oil tank | 25 L |
| Engine oil | 1.7L |
| Dimensions (mm) | 2285x1270x1155 |
| Max. working height | 2100 mm |
| Max. unloading height | 1500 mm |
| Bucket width | 1150 mm |
| Clearance | 90 mm |
| Wheelbase | 685 m |
Self-loading concrete mixer with hydraulic drive
A concrete mixer is used on construction sites for mixing dry and wet concrete, for cement and sand mortars, and on farms as a mixer for feed, grain, etc. The mixed material can be very diverse.
Product characteristics:
- sheet thickness: jacket - 5mm, bottom - 8mm,
- rotational speed: approx. 30 r/min,
- reinforced mixer arms,
- mounting: three-point three-point linkage, additionally adapted to be carried with pallet forks.
|
Model |
BHS 1200 |
BHS 1800 |
|
Capacity [l] |
1200 |
1800 |
|
Height [mm] |
1180 |
1270 |
|
Diameter [mm] |
1500 |
1900 |
|
TUZ [cat] |
II |
III |
|
Gear ratio |
1 : 6 |
1 : 6 |
|
Power reserve [PS] |
80 HP/ 75 L/min |
110 |
|
Weight [kg] |
650 |
1000 |
Shovel characteristics:
- sheet thickness: jacket - 4mm, side - 4mm
- number of hydraulic cylinders: 2 cylinders
|
Model |
BHS 1200 |
BHS 1800 |
|
Width [mm] |
1400 |
1400 |
|
Capacity [l] |
330 |
440 |
|
Weight [kg] |
200 |
220 |
Self-loading concrete mixer with PTO/PTO drive
A concrete mixer is used on construction sites for mixing dry and wet concrete, for cement and sand mortars, and on farms as a mixer for feed, grain, etc. The mixed material can be very diverse.
Product characteristics:
- sheet thickness: jacket - 5mm, bottom - 8mm,
- rotational speed: approx. 30 r/min,
- reinforced mixer arms,
- mounting: three-point three-point linkage, additionally adapted to be carried with pallet forks.
|
Model |
BWS 1200 |
BWS 1800 |
|
Capacity [l] |
1200 |
1800 |
|
Height [mm] |
1180 |
1270 |
|
Diameter [mm] |
1500 |
1900 |
|
TUZ [cat] |
II |
III |
|
Gear ratio |
1 : 7,75 |
1 : 10,8 |
|
Power reserve [PS] |
80 |
110 |
|
Weight [kg] |
650 |
1000 |
Shovel characteristics:
- sheet thickness: jacket - 4mm, side - 4mm
- number of hydraulic cylinders: 2 cylinders
|
Model |
BWS 1200 |
BWS 1800 |
|
Width [mm] |
1400 |
1400 |
|
Capacity [l] |
330 |
440 |
|
Weight [kg] |
200 |
220 |

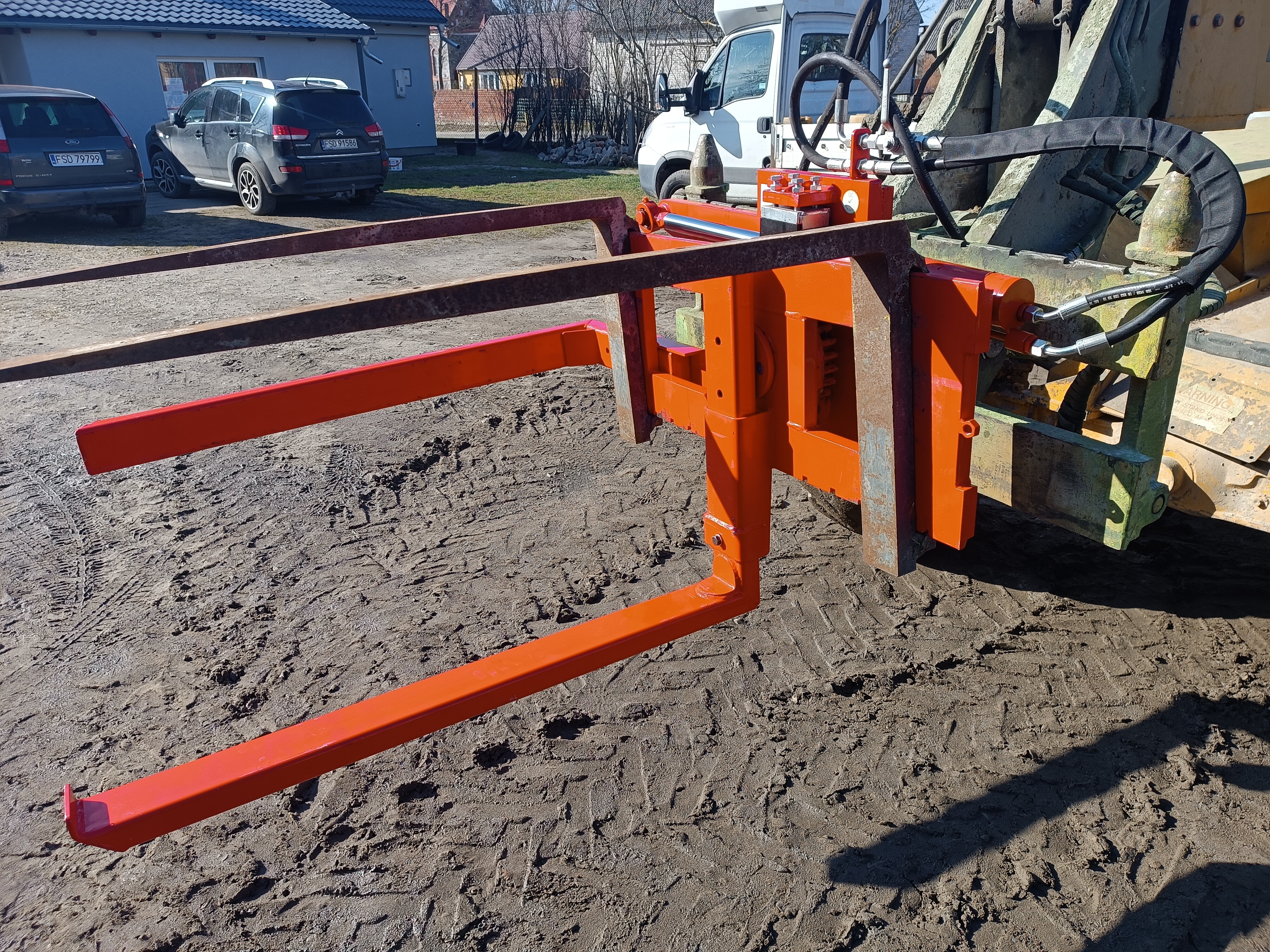

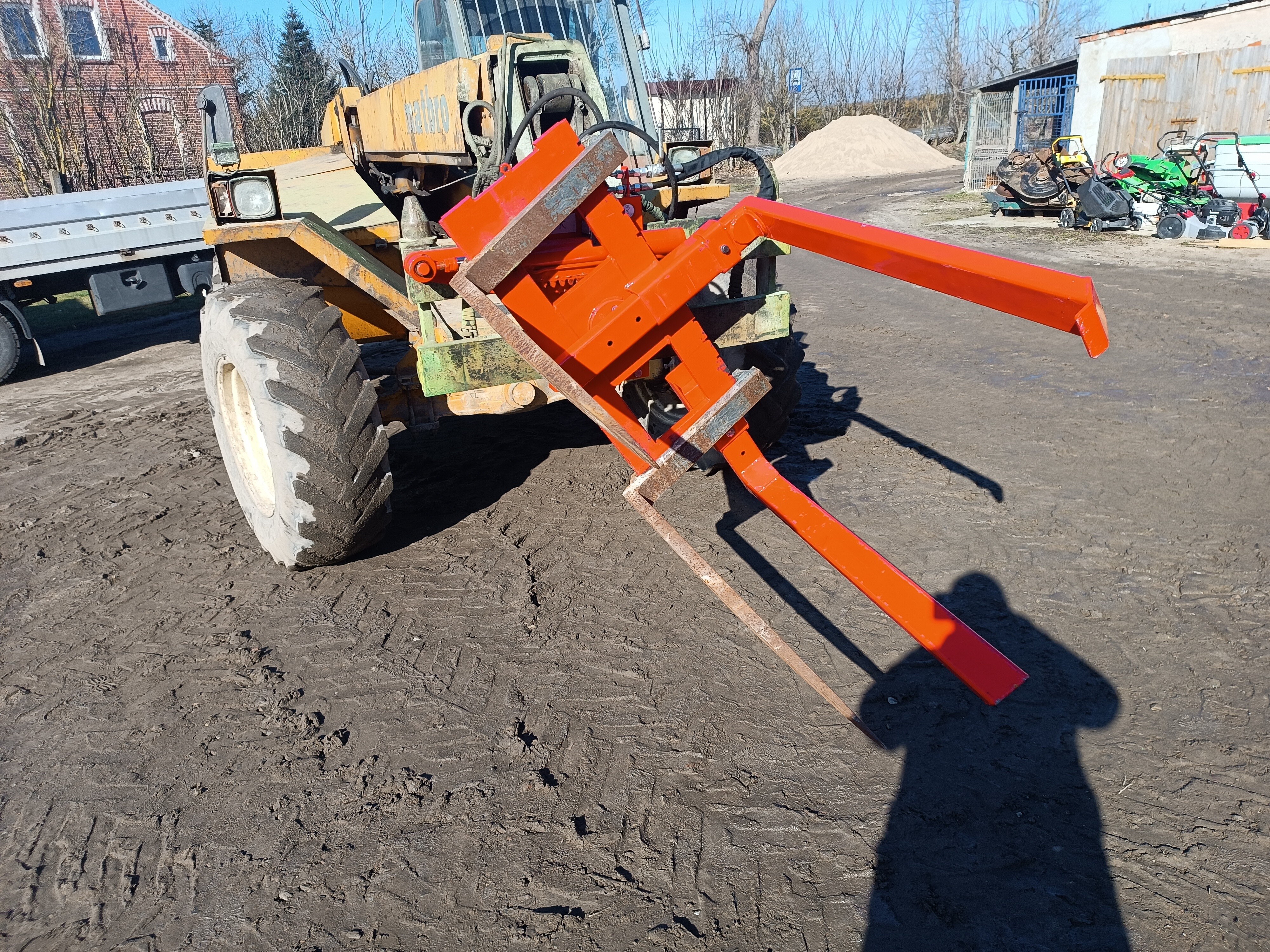

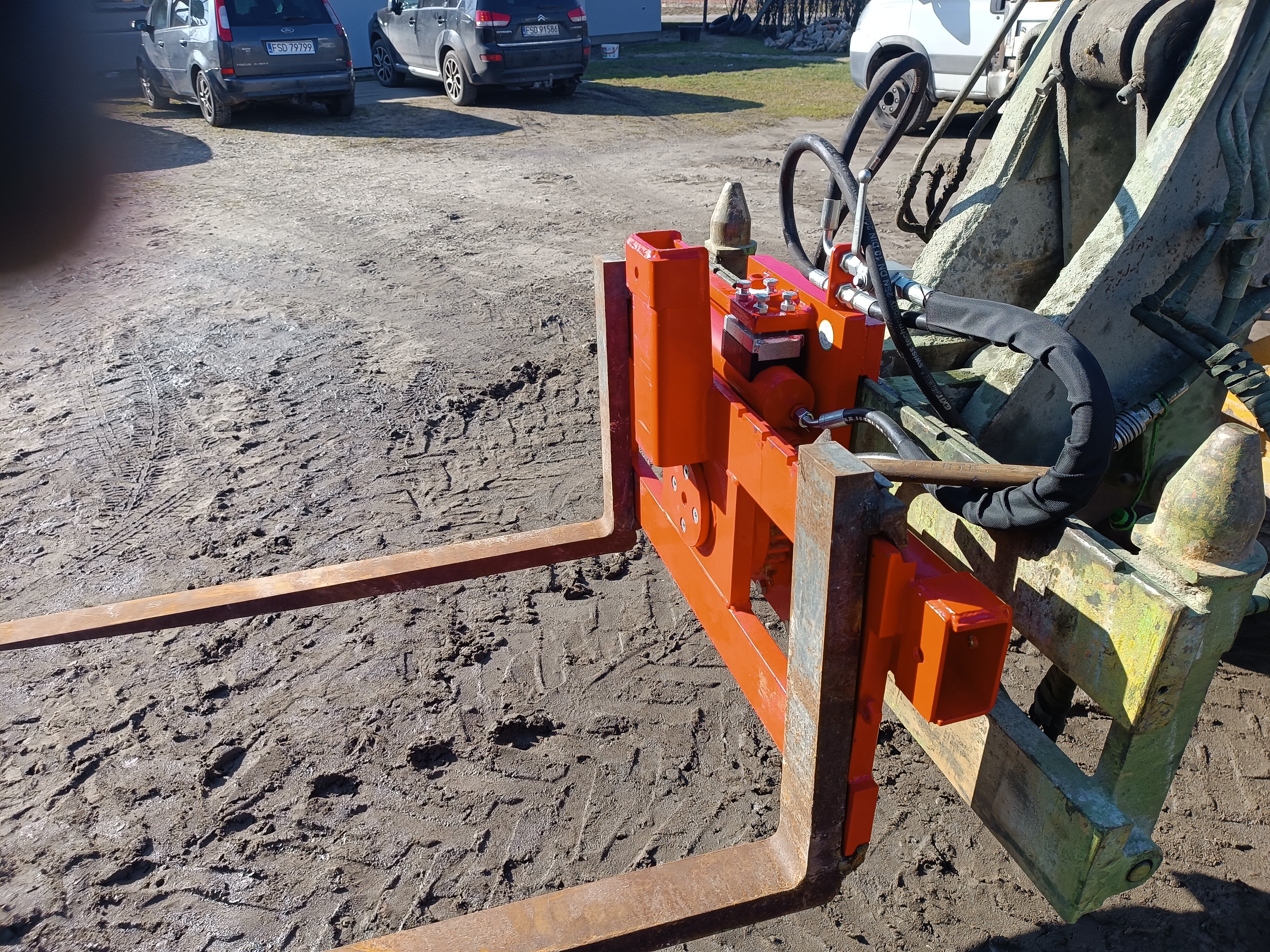

Turntable for a forklift/telescopic loader
or agricultural tractor with loader
-Rotation angle 180 degrees
-Weight approx. 220kg
-Support arm -Rotation direction left or right side at the customer's request
Forklift/Telehandler/Agricultural tractor with loader
Star screener PSG 800 screening bucket
The PSG star screener is a machine used for screening (fractionation) of various types of bulk materials. It can be used, for example, for: soil, humus, peat, sand (gravel) and crushed aggregates - without the possibility of crushing and shredding them.
| Model | PSG800 |
|---|---|
| Carrier weight [t] | 12-18 |
| Empty weight [kg] | 890 |
| Basket height [mm] | 1400 |
| Basket depth [mm] | 1045 |
| Theoretical/working capacity [l] | 800/600 |
| Operating oil flow [l/m] | 40/57 |
Bucket mixer/concrete mixer
The spoon mixer is used for mixing concrete, fertilizers and other loose materials. A toothed-chain transmission and a high-quality hydraulic motor were used.
| Model |
MB100 |
MB250 |
MB300 |
MB400 |
MB500 |
MB600 |
MB700 |
| Width total [mm] |
991 |
1591 |
1428 |
1628 |
1828 |
2028 |
2228 |
| Working width [mm] |
800 |
1400 |
1200 |
1400 |
1600 |
1800 |
2000 |
| Max depth [mm] |
529 |
529 |
692 |
692 |
692 |
692 |
692 |
| Working depth [mm] |
429 |
429 |
592 |
592 |
592 |
592 |
592 |
| Max capacity [l] |
100 |
250 |
300 |
400 |
500 |
600 |
700 |
| Bottom discharge |
Manual or hydraulic |
Manual or hydraulic |
Manual or hydraulic |
Manual or hydraulic |
Manual or hydraulic |
Manual or hydraulic |
Manual or hydraulic |
| Downpipe diameter [mm] |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
| Fixing the mixer |
For the client |
For the client |
For the client |
For the client |
For the client |
For the client |
For the client |
| Solenoid valve [control from the cab] |
With hydraulic discharge |
With hydraulic discharge |
With hydraulic discharge |
With hydraulic discharge |
With hydraulic discharge |
With hydraulic discharge |
With hydraulic discharge |
| Weight [kg] |
150 |
200 |
350 |
390 |
430 |
470 |
510 |
| Engine |
OMS 315cm3 |
OMS 315cm3 |
SMT 500cm3 |
SMT 500cm3 |
SMT 500cm3 |
SMT 500cm3 |
SMT 500cm3 |
| Oil flow max [l] |
60 |
60 |
100 |
100 |
100 |
100 |
100 |
| Chain transmission |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
| Thickness of mixing propeller [mm] |
8 |
8 |
12 |
12 |
12 |
12 |
12 |
MT mixer
The MT mixer is a self-loading machine mainly used by construction companies. The machine is designed for mixing concrete, gravel and soil, and is ideal for preparing bedding for paving stones and mixing animal feed.
BASIC EQUIPMENT:
- drive with hydraulic system
- mounting to choose from: SMS, EURO
- mixing screw
- hydraulically opened trigger
- safety valve
ADDITIONAL EQUIPMENT:
- downpipe diameter 150 mm
- mounting adapted to the customer's machine
| Model |
MT-120 |
MT-140 |
MT-160 |
MT-180 |
| Working width A [mm] |
1540 |
1740 |
1940 |
2140 |
| Working width B [mm] |
1200 |
1400 |
1600 |
1800 |
| Depth max C [mm] |
725 |
725 |
725 |
725 |
| Max capacity - C [l] |
494 |
576 |
658 |
740 |
| Effective depth D [mm] |
645 |
645 |
645 |
645 |
| Effective capacity - D [l] |
422 |
492 |
562 |
632 |
| Bevel-helical gear |
YES |
YES |
YES |
TAK |
| Mixer diameter [mm] |
500 |
500 |
500 |
500 |
| Mixing element thickness [mm] |
12-15 |
12-15 |
12-15 |
12-15 |
| Bottom drain - hydraulic |
YES |
YES |
YES |
YES |
| Downpipe diameter [mm] |
150 |
150 |
150 |
150 |
| Fixing |
as agreed |
as agreed |
as agreed |
as agreed |
| Solenoid valve - controlled from the cabin |
YES |
YES |
YES |
YES |
| Weight [kg] |
502 |
546 |
590 |
634 |
| Hydraulic motor |
160 |
160 |
160 |
160 |
| Przepływ oleju [l/min] roboczy |
57/75 |
57/75 |
57/75 |
57/75 |
| Max. |
68/95 |
68/95 |
68/95 |
68/95 |
| Pressure [bar] |
170/170 |
170/170 |
170/170 |
170/170 |
| Max. |
190/275 |
190/275 |
190/275 |
190/275 |
Electric concrete mixer
A concrete mixer is used on construction sites for mixing dry and wet concrete, for cement and sand mortars, and on farms as a mixer for feed, grain, etc. The mixed material can be very diverse.
| Model |
BE 1200 |
BE 1800 |
| Concrete mixer height [cm] |
168 |
187 |
| Drum diameter [cm] |
150 |
190 |
| Engine power [kW] |
11 |
15 |
| Speed mixed [rpm] |
30 |
30 |
| Thickness of sheet metal wall [mm] |
5 |
5 |
| Bottom sheet thickness [mm] |
8 |
8 |
| Concrete mixer weight [kg] |
850 |
1200 |
| Usable capacity [l] |
850 |
120 |
Electric concrete mixer
A concrete mixer is used on construction sites for mixing dry and wet concrete, for cement and sand mortars, and on farms as a mixer for feed, grain, etc. The mixed material can be very diverse.
| Model |
BE 400 |
BE 600 |
BE 800 |
BE 1000 |
BE 1200 |
| Height of the concrete mixer [cm] |
140 |
140 |
140 |
140 |
140 |
| Drum height [cm] |
50 |
65 |
65 |
65 |
65 |
| Drum diameter [cm] |
100 |
120 |
140 |
160 |
180 |
| Engine power [kW] |
4 |
5,5 |
5,5 |
7,5 |
7,5 |
| Speed mixed [rpm] |
30 |
30 |
30 |
30 |
30 |
| Sheet thickness wall [mm] |
4 |
4 |
4 |
4 |
4 |
| Sheet thickness bottom [mm] |
8 |
8 |
8 |
8 |
8 |
| Concrete mixer weight [kg] |
380 |
460 |
550 |
640 |
760 |
| Usable capacity [l] |
250 |
450 |
650 |
850 |
1000 |
Electric concrete mixer
A concrete mixer is used on construction sites for mixing dry and wet concrete, for cement and sand mortars, and on farms as a mixer for feed, grain, etc. The mixed material can be very diverse.
| Model |
BE 400 |
BE 600 |
BE 800 |
BE 1000 |
BE 1200 |
| Concrete mixer height [cm] |
100 |
120 |
120 |
120 |
120 |
| Drum height [cm] |
50 |
65 |
65 |
65 |
65 |
| Drum diameter [cm] |
100 |
120 |
140 |
160 |
180 |
| Engine power [kW] |
4 |
5,5 |
5,5 |
7,5 |
7,5 |
| Speed mixed [rpm] |
30 |
30 |
30 |
30 |
30 |
| Wall sheet thickness [mm] |
4 |
4 |
4 |
4 |
4 |
| Bottom sheet thickness [mm] |
8 |
8 |
8 |
8 |
8 |
| Concrete mixer weight [kg] |
350 |
400 |
450 |
470 |
500 |
| Usable capacity [l] |
250 |
450 |
650 |
850 |
1000 |
Hydraulic concrete mixer
A concrete mixer is used on construction sites for mixing dry and wet concrete, for cement and sand mortars, and on farms as a mixer for feed, grain, etc. The mixed material can be very diverse.
| Model |
BH 400 |
BH 600 |
BH 800 |
BH 1000 |
BH 1200 |
| Concrete mixer height [cm] |
100 |
120 |
120 |
120 |
120 |
| Drum height [cm] |
50 |
65 |
65 |
65 |
65 |
| Drum diameter [cm] |
100 |
120 |
140 |
160 |
180 |
| Engine power |
400 fi32 |
400 fi32 |
400 fi32 |
400 fi40 |
630 fi40 |
| Speed mixed [rpm] |
25 |
25 |
25 |
25 |
25 |
| Sheet thickness wall [mm] |
4 |
4 |
4 |
4 |
4 |
| Bottom sheet thickness [mm] |
8 |
8 |
8 |
8 |
8 |
| Concrete mixer weight [kg] |
300 |
330 |
360 |
400 |
480 |
| Usable capacity [l] |
250 |
450 |
650 |
850 |
1000 |
OPIS JUŻ WKRÓTCE
OPIS JUŻ WKRÓTCE
OPIS JUŻ WKRÓTCE
OPIS JUŻ WKRÓTCE
PSB screening bucket
A spoon for sifting natural materials such as
such as gravel, sand or various aggregates
kind.
BASIC EQUIPMENT:
- drive with hydraulic system
- 50x50 screening panels
- HB500 blade
ADDITIONAL EQUIPMENT:
- mounting
- panels in other sizes
- HB500 steel panels
- front mounting frame - adapter
| Model |
PSB-250 |
PSB-500 |
PSB-1000 |
| Carrier weight [t] |
2,5-5 |
7-12 |
18-26 |
| Empty weight [kg] |
250 |
580 |
1500 |
| Basket diameter [mm] |
750 |
930 |
1200 |
| Basket depth [mm] |
750 |
824 |
1140 |
| Total capacity [l] |
250 |
500 |
1000 |
| Oil flow min. [l/m] |
30/60 |
40/40 |
57/75 |
MTp mixer
Concrete mixing bucket, improved MT mixer type.
TECHNICAL DATA:
-downpipe Ø 225 mm
- cover of the trigger and the hydraulic cylinder of
the lower gate valve
-change of mixers up the emptying of the mixer
from the armed mass,
additional mixing ribbon in the middle part
speeding up the mixing process
-reinforced gear transmission with hydraulic drive
-optimized shape of the safety grid to facilitate
filling
BASIC EQUIPMENT:
- drive with hydraulic system
- mounting to choose from
- mixing screw
- hydraulically opened trigger
- safety valve
ADDITIONAL EQUIPMENT:
- downpipe fi 225 mm
- mounting adapted to the customer's machine
| Model |
MTp-180 |
MTp-200 |
MTp-220 |
| Working width A [mm] |
2140 |
2340 |
2540 |
| Working width B [mm] |
1800 |
2000 |
2200 |
| Depth max C [mm] |
660 |
660 |
660 |
| Max capacity - C [l] |
655 |
727 |
800 |
| Effective depth D [mm] |
580 |
580 |
580 |
| Effective capacity - D [l] |
549 |
610 |
671 |
| Bevel-helical gear |
YES |
YES |
YES |
| Mixer diameter [mm] |
500 |
500 |
500 |
| Mixing element thickness [mm] |
12-15 |
12-15 |
12-15 |
| Lower hydraulic drain |
TAK |
TAK |
TAK |
| Downpipe diameter [mm] |
225 |
225 |
225 |
| Fixing |
as agreed |
as agreed |
|
| Solenoid valve - controlled from the cabin |
YES |
YES |
YES |
| Weight [kg] |
664 |
706 |
748 |
| Hydraulic motor |
160 |
160 |
160 |
| Operating oil flow [l/min]. |
57/75 |
57/75 |
57/75 |
| Max. |
68/95 |
68/95 |
68/95 |
| Ciśnienie [bar] |
170/170 |
170/170 |
170/170 |
| Max. |
190/275 |
190/275 |
190/275 |
